ADC-228A

The ADC-228A is Complete Flash A/D Converter designed by Datel.

Product Overview

Datel

📥 Download Datasheet

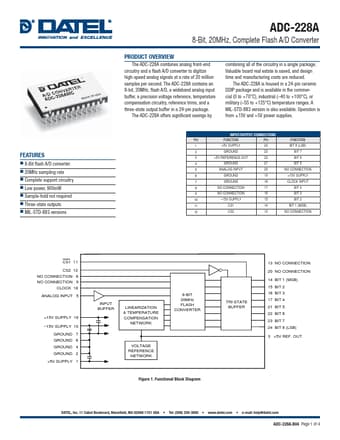

ADC-228A Complete Flash A/D Converter by Datel - Datasheet Preview — Datasheet preview – ADC-228A

Datasheet Details

Part number	ADC-228A
Manufacturer	Datel
File Size	126.93 KB
Description	Complete Flash A/D Converter
Datasheet	ADC-228A-Datel.pdf
Additional preview pages of the ADC-228A datasheet.

Product details

Features

8-Bit flash A/D converter.
20MHz sampling rate.
Complete support circuitry.
Low power, 900mW.
Sample-hold not required.
Three-state outputs.
MIL-STD-883 versions ADC-228A 8-Bit, 20MHz, Complete Flash A/D Converter.
