ADC-20-132+ Datasheet, Coupler, Mini-Circuits

ADC-20-132+ Features

  • Coupler Feature Usable to 1500 MHz Good coupling flatness, ±1.5 dB High power handling:
  • 4W to 700 MHz
  • 2W to 1300 Mhz Low mainline loss, 0.4 dB High directivity, 22 dB Small

PDF File Details

Part number:

ADC-20-132+

Manufacturer:

Mini-Circuits

File Size:

269.34kb

Download:

📄 Datasheet

Description:

Directional coupler.

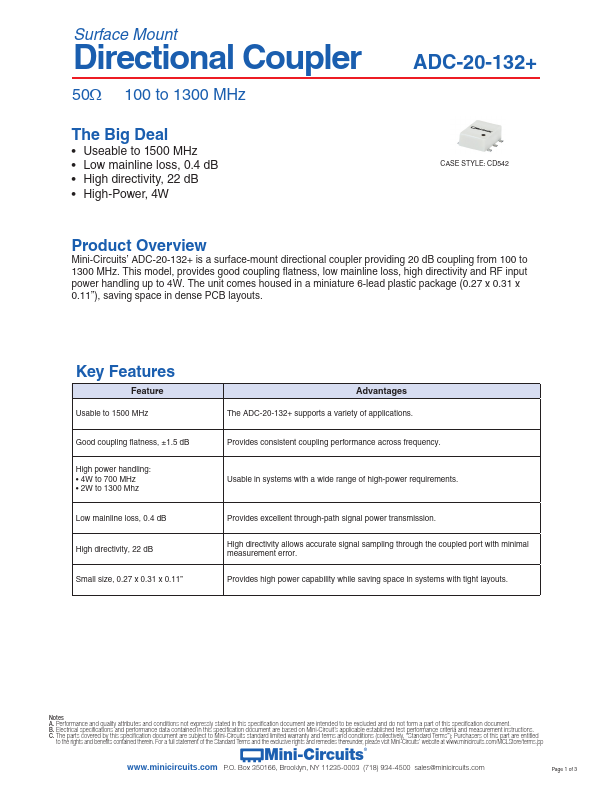

Datasheet Preview: ADC-20-132+ 📥 Download PDF (269.34kb)
Page 2 of ADC-20-132+ Page 3 of ADC-20-132+

ADC-20-132+ Application

  • Applications Provides consistent coupling performance across frequency. Usable in systems with a wide range of high-power requirements. Provides ex

TAGS

ADC-20-132+
Directional
Coupler
Mini-Circuits
