MP1921HQE-A - High Frequency Half-Bridge Gate Driver

This page provides the datasheet information for the MP1921HQE-A, a member of the MP1921A High Frequency Half-Bridge Gate Driver family.

Datasheet Summary

Description

The MP1921A is a high-frequency, 100V, half bridge, N-channel power MOSFET driver.

Its low side and high side driver channels are independently controlled and matched with a time delay of less than 5ns.

Features

Drives N-Channel MOSFET Half Bridge.
120V VBST Voltage Range.
On-Chip Bootstrap Diode.
Typical 16ns Propagation Delay Time.
Less Than 5ns Gate Drive Matching.
Drives 1nf Load with 12ns/9ns Rise/Fall Times with 12V VDD.
TTL Compatible Input.
Less Than 150A Quiescent Current.
UVLO for Both High Side and Low Side.
In SOIC8E, SOIC-8, 3×3mm QFN8, 3×3mm QFN9 and 4x4mm QFN10 Packages.

Datasheet Details

Part number	MP1921HQE-A
Manufacturer	MPS
File Size	575.67 KB
Description	High Frequency Half-Bridge Gate Driver
Datasheet	MP1921HQE-A Datasheet

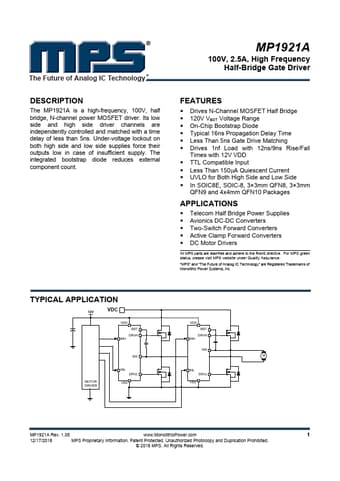

Additional preview pages of the MP1921HQE-A datasheet.
