MP1921HS-A, MP1921A High Frequency Half-Bridge Gate Driver

MP1921HS-A Description

The Future of Analog IC Technology .
The MP1921A is a high-frequency, 100V, half bridge, N-channel power MOSFET driver.

MP1921HS-A Features

* Drives N-Channel MOSFET Half Bridge
* 120V VBST Voltage Range
* On-Chip Bootstrap Diode
* Typical 16ns Propagation Delay Time
* Less Than 5ns Gate Drive Matching
* Drives 1nf Load with 12ns/9ns Rise/Fall Times with 12V VDD
* TTL Compatible Input
* Less Than 150A Qu

MP1921HS-A Applications

* Telecom Half Bridge Power Supplies
* Avionics DC-DC Converters
* Two-Switch Forward Converters
* Active Clamp Forward Converters
* DC Motor Drivers All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assuran

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP1921HS-A, MP1921A. Please refer to the document for exact specifications by model.

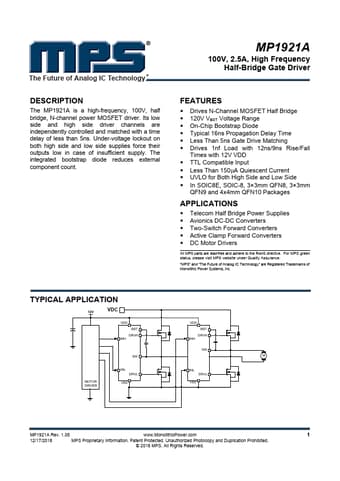

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP1921HS-A, MP1921A
Manufacturer
MPS
File Size
575.67 KB
Datasheet
MP1921A-MPS.pdf
Description
High Frequency Half-Bridge Gate Driver
Note
This datasheet PDF includes multiple part numbers: MP1921HS-A, MP1921A.
Please refer to the document for exact specifications by model.
