MP2005 Datasheet - MPS

ULDO Linear Regulator

MP2005 Features

* of MP2005 include thermal overload and current limit protection, stability with ultra low ESR ceramic capacitors as low as 1μF, and fast transient response. The MP2005 is available in a 8-pin QFN (2mm x 3mm) package. TYPICAL APPLICATION FEATURES

* Wide 1.0V to 5.5V Input Voltage Range

* Sta

MP2005 General Description

The MP2005 is a micropower, ultra low-dropout LDO linear regulator. It has a 1.0V to 5.5V input voltage range and can regulate the output voltage from as low as 0.5V. The MP2005 can supply up to 800mA of load current with a typical dropout voltage of 90mV. It requires a bias supply (2.7V to 5.5V) se.

MP2005 Datasheet (704.65 KB)

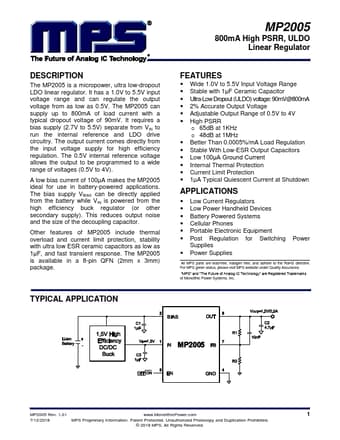

MP2005 Datasheet Preview — Preview of MP2005 PDF

Datasheet Details

Part number:

MP2005

Manufacturer:

MPS

File Size:

704.65 KB

Description:

Uldo linear regulator.
