MP20056GG-18 Datasheet - MPS

250mA Linear Regulator

MP20056GG-18 Features

* include low-power shutdown, shortcircuit protection, and thermal protection. The MP20056 is available in a 2mm×2mm 8-pin QFN and a 5-pin TSOT23-5 packages. MP20056 Low-Noise, High-PSRR, 250mA Linear Regulator FEATURES

* Up to 250mA Output Current

* Low 100mV Dropout at 250mA

* Low 150μA

MP20056GG-18 General Description

The MP20056 is a low-dropout linear regulator that supplies up to 250mA current with a 100mV dropout voltage and can operate from 2.5V to 5.5V input. The output voltage is preset at 1.8V, 2.5V or 3.3V for the two different packages. An external resistor divider can adjust the output voltage from 0.8.

MP20056GG-18 Datasheet (675.87 KB)

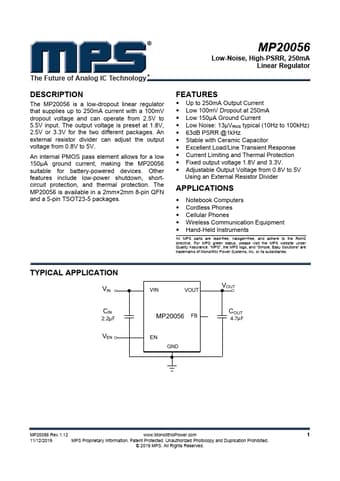

Preview of MP20056GG-18 PDF

Datasheet Details

Part number:

MP20056GG-18

Manufacturer:

MPS

File Size:

675.87 KB

Description:

250ma linear regulator.
