MP20056GJ-33, MP20056 Datasheet - MPS

MP20056GJ-33 250mA Linear Regulator

The MP20056 is a low-dropout linear regulator that supplies up to 250mA current with a 100mV dropout voltage and can operate from 2.5V to 5.5V input. The output voltage is preset at 1.8V, 2.5V or 3.3V for the two different packages. An external resistor divider can adjust the output voltage from 0.8.

MP20056GJ-33 Features

* include low-power shutdown, shortcircuit protection, and thermal protection. The MP20056 is available in a 2mm×2mm 8-pin QFN and a 5-pin TSOT23-5 packages. MP20056 Low-Noise, High-PSRR, 250mA Linear Regulator FEATURES

* Up to 250mA Output Current

* Low 100mV Dropout at 250mA

* Low 150μA

MP20056-MPS.pdf

This datasheet PDF includes multiple part numbers: MP20056GJ-33, MP20056. Please refer to the document for exact specifications by model.

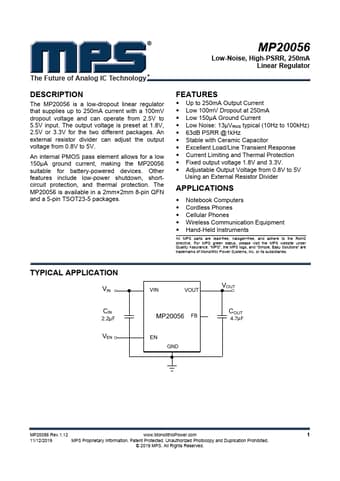

MP20056GJ-33 Datasheet Preview Page 2 MP20056GJ-33 Datasheet Preview Page 3

Datasheet Details

Part number:

MP20056GJ-33, MP20056

Manufacturer:

MPS

File Size:

675.87 KB

Description:

250ma linear regulator.

Note:

This datasheet PDF includes multiple part numbers: MP20056GJ-33, MP20056.
Please refer to the document for exact specifications by model.
