MP20051DN Datasheet - MPS

1A Linear Regulator

MP20051DN Features

* include low-power shutdown, and shortcircuit and thermal protection. The MP20051 is available in 3mm x 3mm 8-pin QFN and SOIC8E packages. FEATURES

* Up to 1A Output Current

* Low 140mV Dropout at 1A

* Low 110μA Ground Current

* Output Voltage Available from 0.8V to 5V

* Low Nois

MP20051DN General Description

The MP20051 is a low-dropout linear regulator that supplies up to 1A current with a 140mV dropout voltage. The externally-adjustable output voltage has a range of 0.8V to 5V from an input voltage of 2.5V to 5.5V. An internal PMOS pass element allows for a low 110μA ground current, making the MP20051.

MP20051DN Datasheet (340.31 KB)

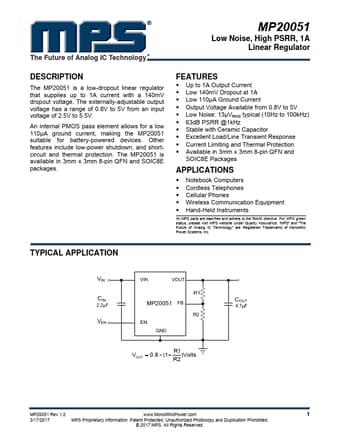

MP20051DN Datasheet Preview — Preview of MP20051DN PDF

Datasheet Details

Part number:

MP20051DN

Manufacturer:

MPS

File Size:

340.31 KB

Description:

1a linear regulator.
