MP20073DH, MP20073 - DDR Memory Termination Regulator

MP20073DH Description

The Future of Analog IC Technology MP20073 2A, 1.3V *6.0V DDR Memory Termination Regulator .
The MP20073 integrates the DDR memory termination regulator with the output voltage (VTT) and a buffered VTTREF outputs is a half of VREF.

MP20073DH Features

* VDDQ Voltage Range: 1.3V to 6.0 V
* Up to 2A Integrated Sink/Source Linear Regulator with Accurate VREF/2 Divider Reference for DDR Termination
* Requires Only 20µF Ceramic Output Capacitance
* Drive Voltage : 3.3V
* 1.3V Input (VDDQ) Helps Reduce Total Power Dissipation

MP20073DH Applications

* Notebook DDR2/3 Memory Supply and Termination Voltage in ACPI Compliant
* Active Termination Busses All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Techno

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP20073DH, MP20073. Please refer to the document for exact specifications by model.

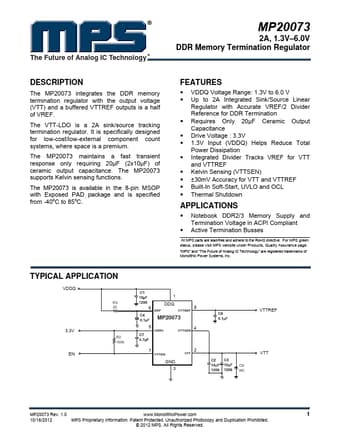

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP20073DH, MP20073
Manufacturer
MPS
File Size
424.79 KB
Datasheet
MP20073-MPS.pdf
Description
DDR Memory Termination Regulator
Note
This datasheet PDF includes multiple part numbers: MP20073DH, MP20073.
Please refer to the document for exact specifications by model.
