MP20075 - 3A DDR2/3/3L/4 Memory Termination Regulator

MP20075 Description

The Future of Analog IC Technology MP20075 3A, 1.05V *3.6V DDR2/3/3L/4 Memory Termination Regulator .
The MP20075 precision DDR2/3/3L/4 termination LDO regulator features a precision VREF/2 tracking voltage for accurate termination.

MP20075 Features

* a precision VREF/2 tracking voltage for accurate termination. The VTT-LDO output can sink/source up to 3A. The MP20075 maintains a fast transient response only requires 20μF (2x10μF) ceramic output capacitance. The MP20075 supports Kelvin sensing. The MP20075 is available in the 8-pin MSOP with Expo

MP20075 Applications

* Notebook DDR2/3/3L/4 Memory Supply and Termination Voltage in ACPI Compliant Systems
* Active Termination Bus All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future o

📥 Download Datasheet

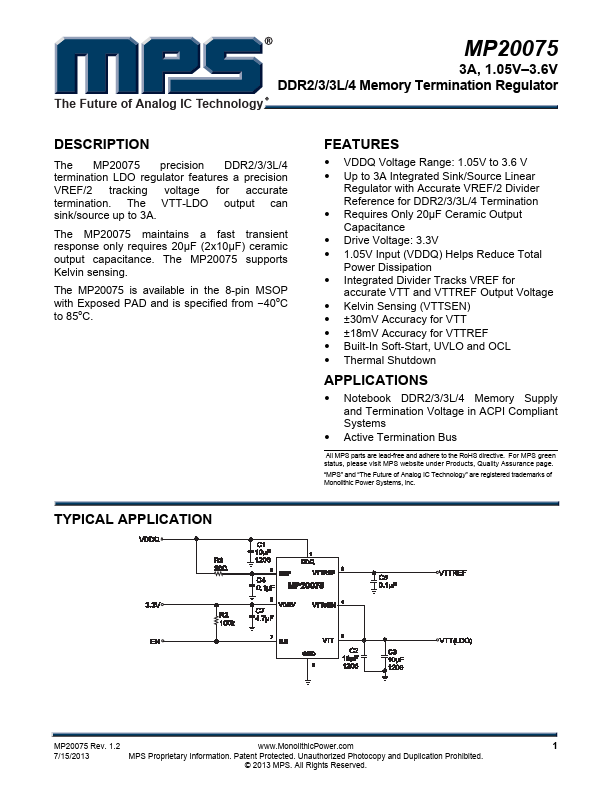

Preview of MP20075 PDF

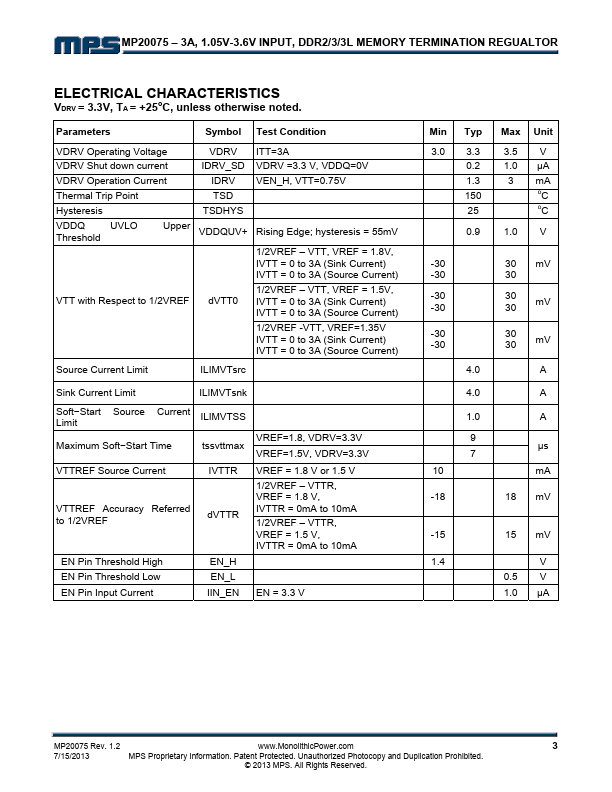

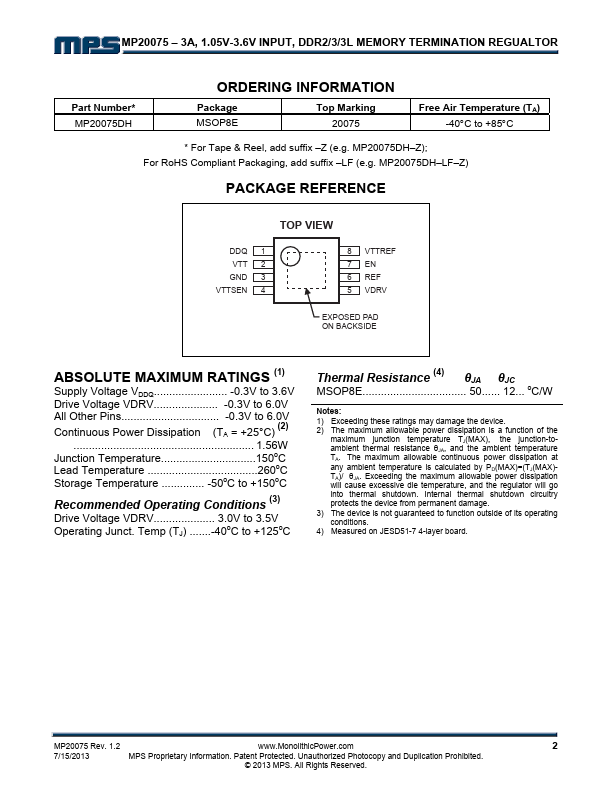

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP20075
Manufacturer
MPS
File Size
408.31 KB
Datasheet
MP20075-MPS.pdf
Description
3A DDR2/3/3L/4 Memory Termination Regulator
