MP2233DJ, MP2233 Datasheet - MPS

MP2233DJ - Step-Down Converter

The MP2233 is a high-frequency, synchronous, rectified, step-down switch mode converter with built in internal power MOSFETs.

It offers a very compact solution to achieve 3A continuous output current with excellent load and line regulation over a wide input supply range.

The MP2233 has synchronous m

MP2233DJ Features

* include over-current protection, thermal shutdown, and external SS control. The MP2233 requires a minimal number of readily-available external components and is available in a space-saving 8-pin TSOT23 package. MP2233 High-Efficiency, 3A, 16V, 1.4MHz Synchronous, Step-Down Converter FEATURES

MP2233-MPS.pdf

This datasheet PDF includes multiple part numbers: MP2233DJ, MP2233. Please refer to the document for exact specifications by model.

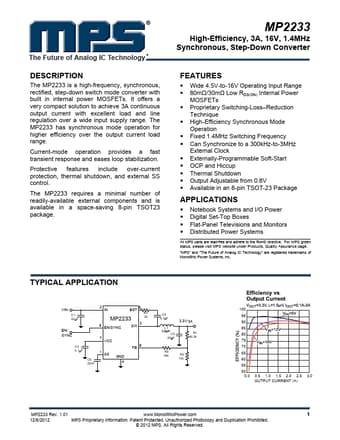

MP2233DJ Datasheet Preview Page 2 MP2233DJ Datasheet Preview Page 3
