MP2236CGJ, MP2236C Datasheet - MPS

MP2236CGJ FCCM Synchronous Step-Down Converter

The MP2236C is a high-frequency, synchronous, rectified, step-down, switch-mode converter. The MP2236C offers a fully integrated solution that achieves up to 6A of continuous output current (IOUT), with excellent load and line regulation across a wide input supply range. Constant-on-time (COT) contr.

MP2236CGJ Features

* include hiccup over-current protection (OCP) and thermal shutdown. The MP2236C requires a minimal number of readily available, standard external components, and is available in a space-saving TSOT23-8 package. TYPICAL APPLICATION MP2236C 18V, 6A, High-Efficiency, FCCM Synchronous Step-Down Converte

MP2236C-MPS.pdf

This datasheet PDF includes multiple part numbers: MP2236CGJ, MP2236C. Please refer to the document for exact specifications by model.

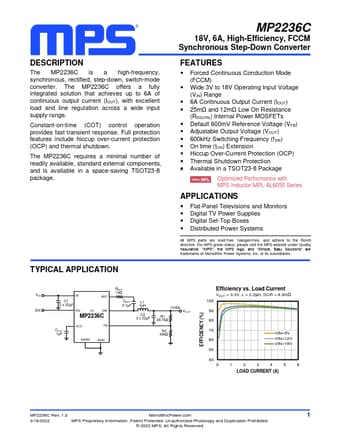

MP2236CGJ Datasheet Preview Page 2 MP2236CGJ Datasheet Preview Page 3

Datasheet Details

Part number:

MP2236CGJ, MP2236C

Manufacturer:

MPS

File Size:

623.46 KB

Description:

Fccm synchronous step-down converter.

Note:

This datasheet PDF includes multiple part numbers: MP2236CGJ, MP2236C.
Please refer to the document for exact specifications by model.
