MP2236

Synchronous Step-Down Converter

MP2236 Features

* include hiccup over-current protection (OCP) and thermal shutdown. The MP2236 requires a minimal number of readily available, standard external components and is available in a space-saving TSOT23-8 package. FEATURES

* Wide 3V to 18V Operating Input Range

* 6A Continuous Output Current

MP2236 General Description

The MP2236 is a high-frequency, synchronous, rectified, step-down switch-mode converter. The MP2236 offers a fully integrated solution that achieves 6A of continuous output current with excellent load and line regulation over a wide input supply range. Constant-on-time (COT) control operation provid.

MP2236 Datasheet (1.26 MB)

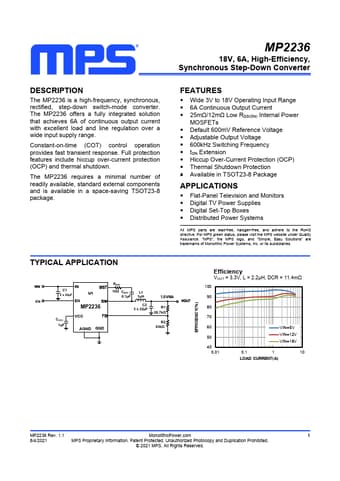

Preview of MP2236 PDF

Datasheet Details

Part number:

MP2236

Manufacturer:

MPS

File Size:

1.26 MB

Description:

Synchronous step-down converter.
