MP2313 High Efficiency 1A 24V Synchronous Step Down Converter

📥 Download Datasheet  Datasheet Preview Page 1

Description

The Future of Analog IC Technology MP2313 High Efficiency 1A, 24V, 2MHz Synchronous Step Down Converter .
The MP2313 is a high frequency synchronous rectified step-down switch mode converter with built-in internal power MOSFETs.

📥 Download Datasheet

Preview of MP2313 PDF

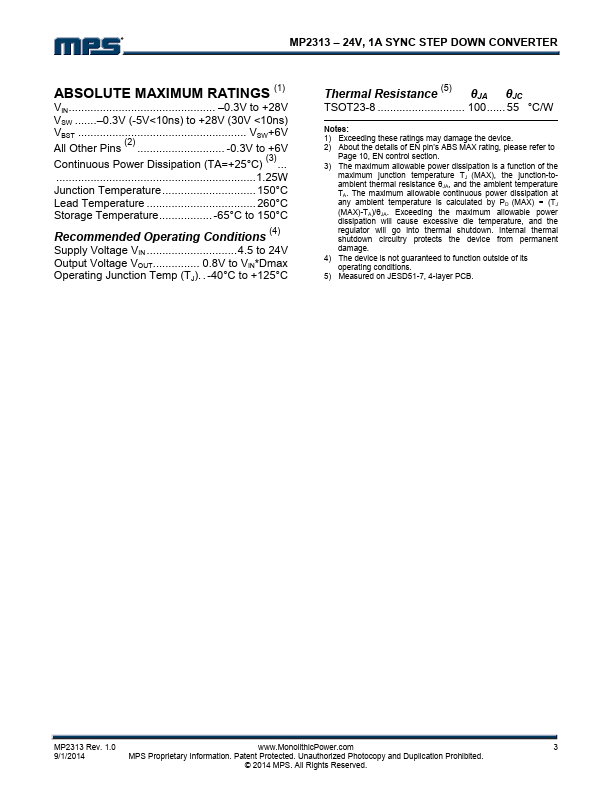

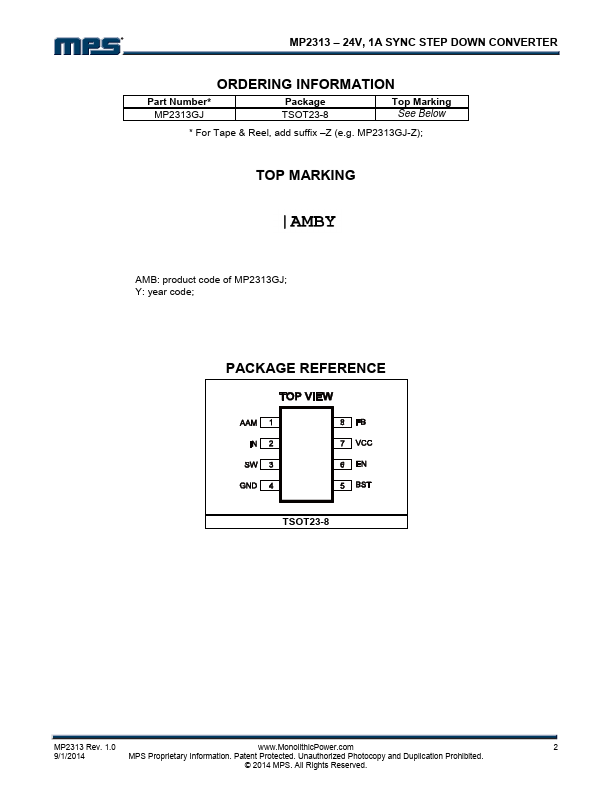

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MP2313
Manufacturer
MPS
File Size
821.02 KB
Datasheet
MP2313-MPS.pdf
Description
High Efficiency 1A 24V Synchronous Step Down Converter

Features

* include OCP and thermal shut down. The MP2313 requires a minimum number of readily available standard external components and is available in a space saving TSOT23-8 package. FEATURES
* Wide 4.5V to 24V Operating Input Range
* 1A Load Current
* 110mΩ/50mΩ Low Rds(on) Interna

Applications

* Notebook Systems and I/O Power
* Digital Set Top Boxes
* Flat Panel Television and Monitors All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog I
