MP2318 - High Efficiency 2A 24V 2MHz Synchronous Step-Down Converter

MPS

📥 Download Datasheet

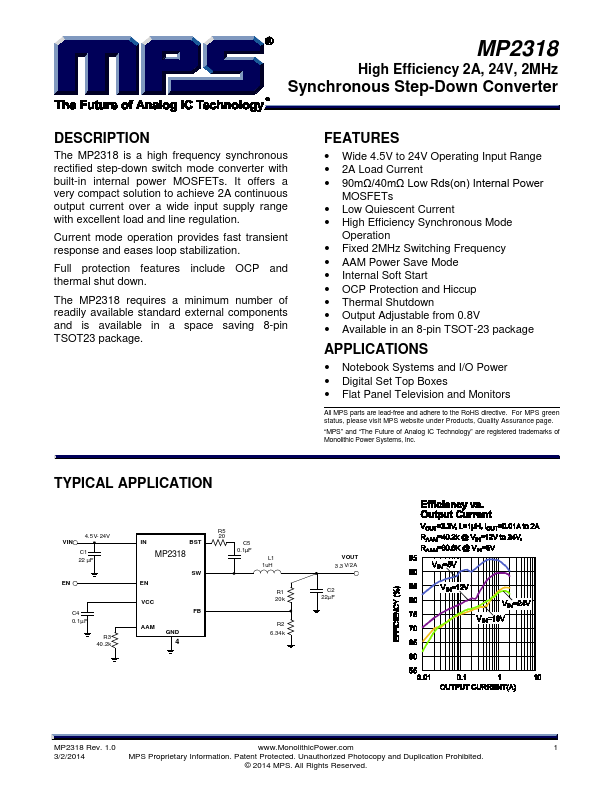

MP2318 Datasheet Preview — Preview of MP2318 PDF

datasheet Preview Page 2

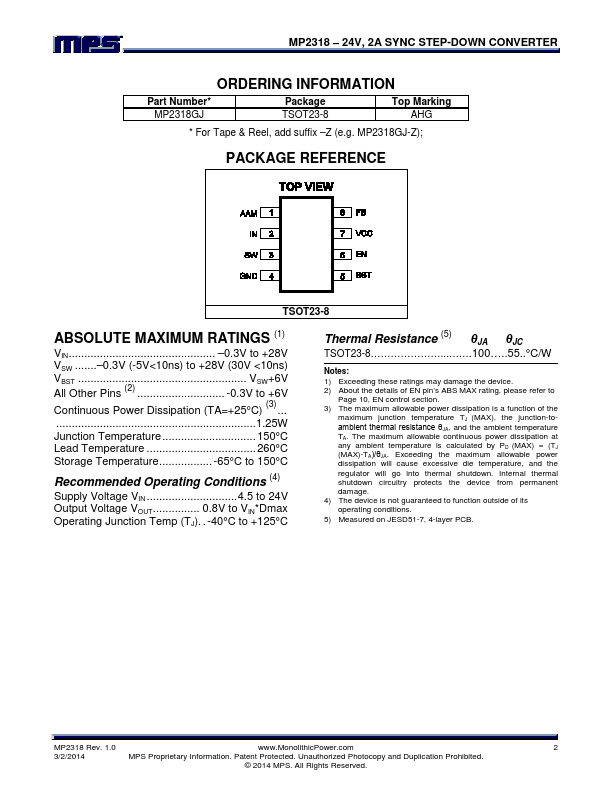

datasheet Preview Page 3

Datasheet Details

Part number	MP2318
Manufacturer	MPS
File Size	1.04 MB
Description	High Efficiency 2A 24V 2MHz Synchronous Step-Down Converter
Datasheet	MP2318-MPS.pdf

MP2318 Product details

Description

The MP2318 is a high frequency synchronous rectified step-down switch mode converter with built-in internal power MOSFETs.

Features

include OCP and thermal shut down. The MP2318 requires a minimum number of readily available standard external components and is available in a space saving 8-pin TSOT23 package.
