MP2332CGTL

Synchronous Step-Down Converter

MP2332CGTL Features

* include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2332C requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package. TYPICAL APPLICATION FEATURES

MP2332CGTL General Description

The MP2332C is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2332C offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP2332.

MP2332CGTL Datasheet (692.26 KB)

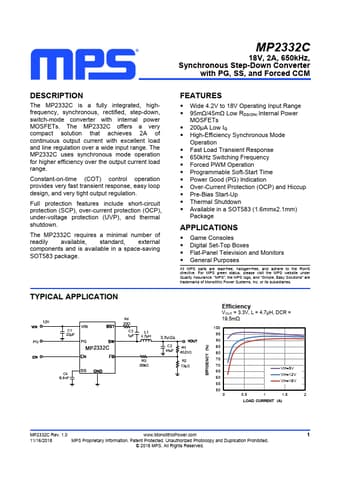

Preview of MP2332CGTL PDF

Datasheet Details

Part number:

MP2332CGTL

Manufacturer:

MPS

File Size:

692.26 KB

Description:

Synchronous step-down converter.
