MP2332HGTL Datasheet - MPS

1.2MHz Synchronous Buck Converter

MP2332HGTL Features

* include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2332H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package TYPICAL APPLICATION MP2332H 4.2 -

MP2332HGTL General Description

The MP2332H is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2332H offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP2332.

MP2332HGTL Datasheet (0.96 MB)

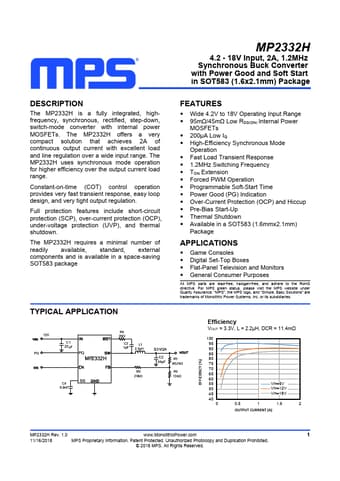

Preview of MP2332HGTL PDF

Datasheet Details

Part number:

MP2332HGTL

Manufacturer:

MPS

File Size:

0.96 MB

Description:

1.2mhz synchronous buck converter.
