MP2460GJ

Synchronous Step-Down Converter

MP2460GJ Features

* such as cycle-by-cycle current limiting, shortcircuit protection (SCP) with hiccup mode, and thermal shutdown in the event of excessive power dissipation. The MP2460 is available in a TSOT23-6 package. FEATURES

* Low-Dropout Mode

* Wide 4.5V to 45V Operating Input Range

* 98% Maximum D

MP2460GJ General Description

The MP2460 is a high-frequency, step-down switching converter with integrated high-side and low-side power MOSFETs. The device can provide up to 0.6A of output current with current mode control for fast loop response. The device’s wide 4.5V to 45V input voltage range accommodates a variety of step-d.

MP2460GJ Datasheet (1.07 MB)

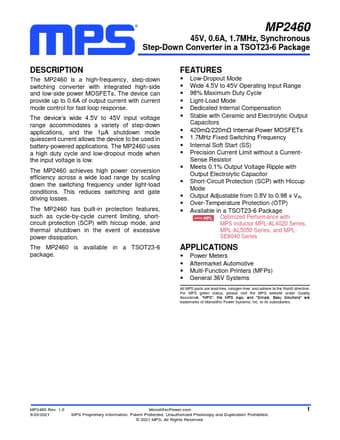

Preview of MP2460GJ PDF

Datasheet Details

Part number:

MP2460GJ

Manufacturer:

MPS

File Size:

1.07 MB

Description:

Synchronous step-down converter.
