MP3120DJ, MP3120 Datasheet - MPS

MP3120DJ 1.1MHz Synchronous Boost Converter

The MP3120 is a high efficiency synchronous, current mode step-up converter. The device can boost a single cell or two cells AA battery up to 5V. The MP3120 can start up from an input voltage as low as 0.8V and provide in-rush current limiting as well as output short circuit protection. The integrat.

MP3120DJ Features

* an integrated power MOSFET that supports up to 5V output and a typical 1.2A switch current. The device also can maintain the output voltage regulated even when the input voltage is above the output voltage. The MP3120 is offered in a 6-lead ThinSOT23 package FEATURES

* Up to 96% Efficiency

MP3120-MPS.pdf

This datasheet PDF includes multiple part numbers: MP3120DJ, MP3120. Please refer to the document for exact specifications by model.

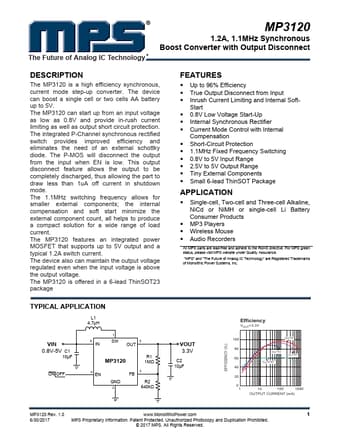

MP3120DJ Datasheet Preview Page 2 MP3120DJ Datasheet Preview Page 3

Datasheet Details

Part number:

MP3120DJ, MP3120

Manufacturer:

MPS

File Size:

757.52 KB

Description:

1.1mhz synchronous boost converter.

Note:

This datasheet PDF includes multiple part numbers: MP3120DJ, MP3120.
Please refer to the document for exact specifications by model.
