MP3204

1.3MHz Fixed Frequency 5-White LED Driver

MP3204 Features

* On Board Power MOSFET

* Drives up to 5 Series White LEDs

* Up to 87% Efficiency

* Over 1MHz Fixed Switching Frequency

* Low 104mV Feedback Voltage

* Soft-Start/PWM Dimming

* UVLO, Thermal Shutdown

* Internal Current Limit

* Op

MP3204 General Description

The MP3204 is a step-up converter designed for driving up to 5 series white LEDs from a single cell Lithium Ion battery. The MP3204 uses current mode, fixed frequency architecture to regulate the LED current, which is measured through an external current sense resistor. Its low 104mV feedback voltag.

MP3204 Datasheet (259.90 KB)

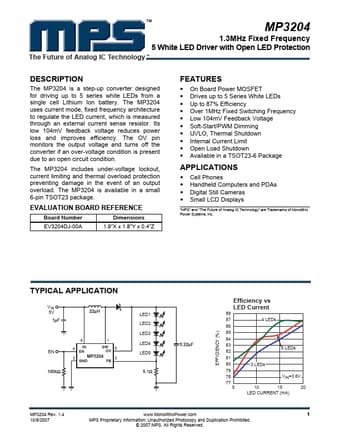

Preview of MP3204 PDF

Datasheet Details

Part number:

MP3204

Manufacturer:

MPS

File Size:

259.90 KB

Description:

1.3mhz fixed frequency 5-white led driver.
