MP3213DQ

700KHz/1.3MHz Boost Converter

MP3213DQ Features

* 3.5A, 0.18Ω, 25V Power MOSFET

* Uses Tiny Capacitors and Inductors

* Pin Selectable 700KHz or 1.3MHz Fixed Switching Frequency

* Programmable Soft-Start

* Operates with Input Voltage as Low as 2.5V and Output Voltage as High as 22V

* 12V at 500mA fro

MP3213DQ General Description

The MP3213 is a current mode step-up converter with a 3.5A, 0.18Ω internal switch to provide a highly efficient regulator with fast response. The MP3213 operates at 700KHz or 1.3MHz allowing for easy filtering and low noise. An external compensation pin gives the user flexibility in setting loop dy.

MP3213DQ Datasheet (344.98 KB)

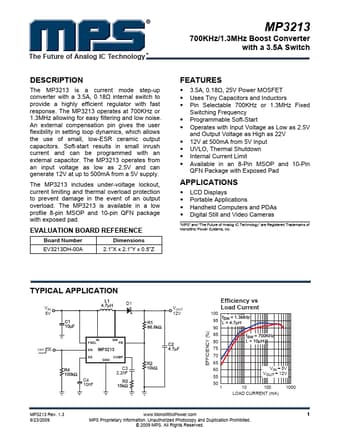

Preview of MP3213DQ PDF

Datasheet Details

Part number:

MP3213DQ

Manufacturer:

MPS

File Size:

344.98 KB

Description:

700khz/1.3mhz boost converter.
