MP3216 Datasheet - MPS

0.75A Step-up Converter

MP3216 Features

* Internal 0.6Ω Power MOSFET

* Up to 36V Output Voltage

* 1.3MHz Fixed Switching Frequency

* 42V Over Voltage Shutdown

* Cycle-by-Cycle Over Current Protection

* UVLO, Thermal Shutdown

* Output Disconnection

* Output Short Protection

* Available in TSOT23-6, and T

MP3216 General Description

The MP3216 is a monolithic step up converter integrating a 0.75A, 0.6Ω internal switch. The MP3216 uses current mode, fixed frequency architecture to regulate the output voltage, providing fast transient response and cycle by cycle current limit. The MP3216 includes under-voltage lockout, over volta.

MP3216 Datasheet (491.80 KB)

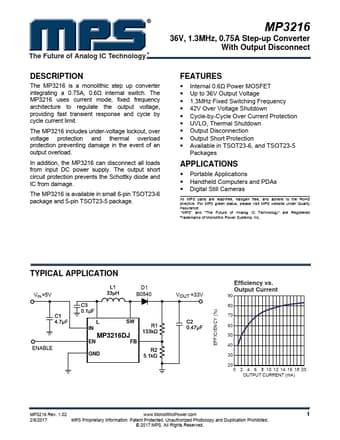

Preview of MP3216 PDF

Datasheet Details

Part number:

MP3216

Manufacturer:

MPS

File Size:

491.80 KB

Description:

0.75a step-up converter.
