MP3213DH, MP3213 - 700KHz/1.3MHz Boost Converter

MP3213DH Description

The Future of Analog IC Technology MP3213 700KHz/1.3MHz Boost Converter with a 3.5A Switch .
The MP3213 is a current mode step-up converter with a 3.

MP3213DH Features

* 3.5A, 0.18Ω, 25V Power MOSFET
* Uses Tiny Capacitors and Inductors
* Pin Selectable 700KHz or 1.3MHz Fixed Switching Frequency
* Programmable Soft-Start
* Operates with Input Voltage as Low as 2.5V and Output Voltage as High as 22V
* 12V at 500mA fro

MP3213DH Applications

* LCD Displays
* Portable Applications
* Handheld Computers and PDAs
* Digital Still and Video Cameras “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION D1 VIN 5V OFF ON IN FSEL SW FB EN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP3213DH, MP3213. Please refer to the document for exact specifications by model.

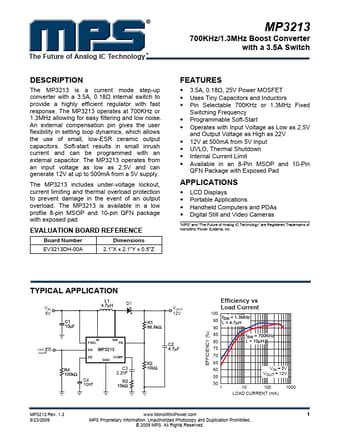

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP3213DH, MP3213
Manufacturer
MPS
File Size
344.98 KB
Datasheet
MP3213-MPS.pdf
Description
700KHz/1.3MHz Boost Converter
Note
This datasheet PDF includes multiple part numbers: MP3213DH, MP3213.
Please refer to the document for exact specifications by model.
