MP3202

1.3A Fixed Frequency White LED Driver

MP3202 Features

* 2.5V to 6V Input Voltage Range

* On Board Power MOSFET

* Drives up to 39 White LEDs at 5V Input

* Up to 92% Efficiency

* Over 1MHz Fixed Switching Frequency

* Open Load Shutdown

* Low 104mV Feedback Voltage

* Soft-Start/PWM Dimming

MP3202 General Description

The MP3202 is a step-up converter designed for driving up to 39 white LEDs (13 strings of 3 LEDs each) from a 5V system rail. The MP3202 uses a current mode, fixed frequency architecture to regulate the LED current, which is measured through an external current sense resistor. Its low 104mV feedback.

MP3202 Datasheet (270.51 KB)

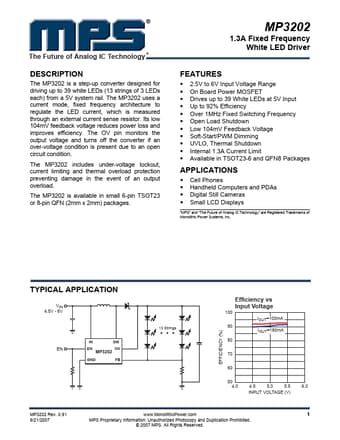

Preview of MP3202 PDF

Datasheet Details

Part number:

MP3202

Manufacturer:

MPS

File Size:

270.51 KB

Description:

1.3a fixed frequency white led driver.
