MP3398EGF, MP3398E Datasheet - MPS

MP3398EGF, MP3398E, WLED Controller

The Future of Analog IC Technology MP3398E 4-String, Max 400mA/String, 80V Return, Step-Up, WLED Controller .
The MP3398E is a step-up controller with four current channels designed to drive WLED arrays for large LCD panel backlighting applications.

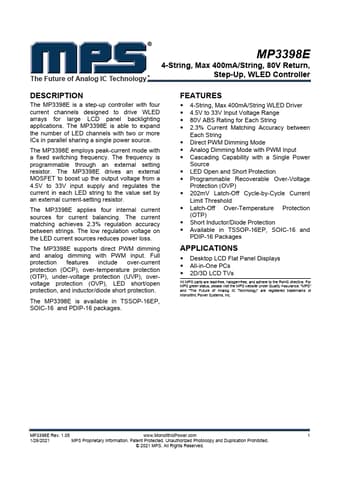

datasheet Preview Page 1 from Datasheet4u.com

MP3398E-MPS.pdf

MP3398EGF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3398EGF, MP3398E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP3398EGF, MP3398E

Manufacturer:

MPS

File Size:

709.83 KB

Description:

WLED Controller

Note:

This datasheet PDF includes multiple part numbers: MP3398EGF, MP3398E.
Please refer to the document for exact specifications by model.

Features

* include over-current protection (OCP), over-temperature protection (OTP), under-voltage protection (UVP), overvoltage protection (OVP), LED short/open protection, and inductor/diode short protection. The MP3398E is available in TSSOP-16EP, SOIC-16 and PDIP-16 packages. FEATURES
* 4-String, Max

Applications

* The MP3398E is able to expand the number of LED channels with two or more ICs in parallel sharing a single power source. The MP3398E employs peak-current mode with a fixed switching frequency. The frequency is programmable through an external setting resistor. The MP3398E drives an external MOSFET
