MP3393EY, MP3393 Datasheet - MPS

MP3393EY 8-String Step-Up White LED Driver

The MP3393 is a step-up controller with 8 current channel sources designed to power WLED backlights for large LCD panels. The MP3393 uses current-mode fixed-frequency architecture. It drives an external MOSFET to boost the output voltage. The switching frequency is programmable by an external settin.

MP3393EY Features

* 9V-to-32V Input Voltage Range

* Drives 8 Channels of LED strings

* Internal Constant-Current Control

* Maximum Channel Current Over 350mA

* 1.2% Current Matching Accuracy Between Strings

* Programmable Switching Frequency

* Analog Dimming and

MP3393-MPS.pdf

This datasheet PDF includes multiple part numbers: MP3393EY, MP3393. Please refer to the document for exact specifications by model.

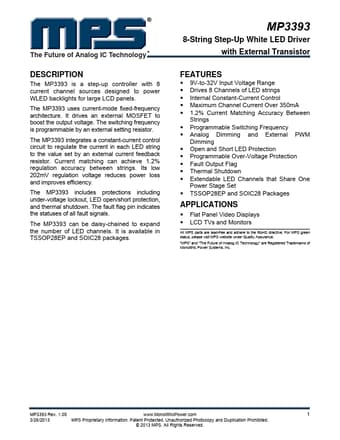

MP3393EY Datasheet Preview Page 2 MP3393EY Datasheet Preview Page 3

Datasheet Details

Part number:

MP3393EY, MP3393

Manufacturer:

MPS

File Size:

508.49 KB

Description:

8-string step-up white led driver.

Note:

This datasheet PDF includes multiple part numbers: MP3393EY, MP3393.
Please refer to the document for exact specifications by model.
