MP5403 - Configurable 2.7V-6V Mini PMIC

MPS

📥 Download Datasheet

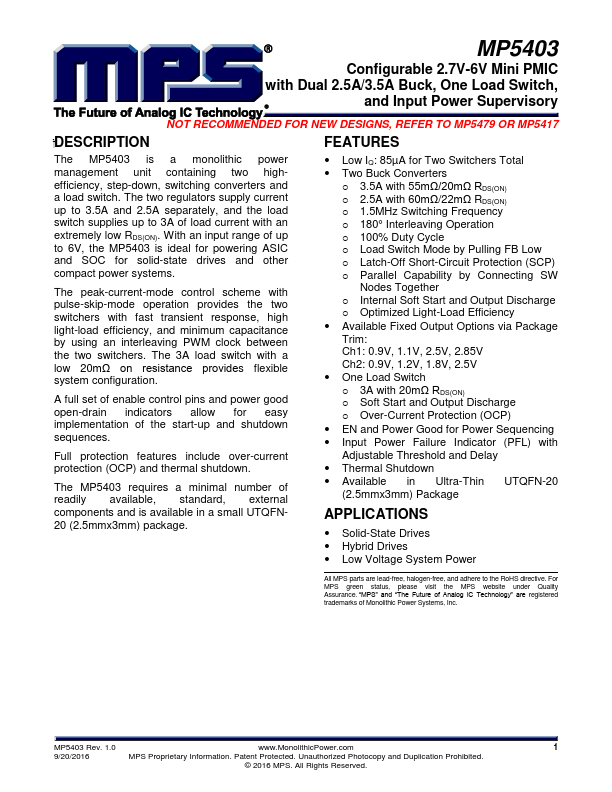

MP5403 Datasheet Preview — Preview of MP5403 PDF

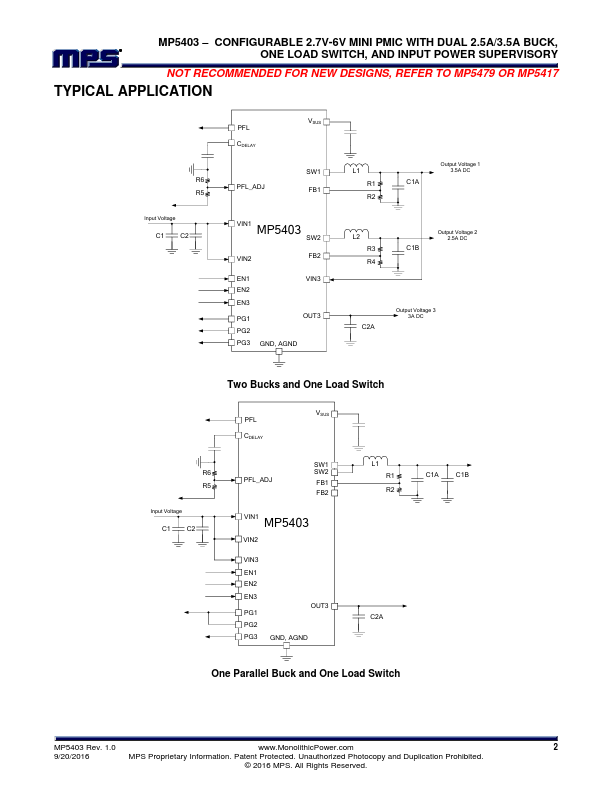

datasheet Preview Page 2

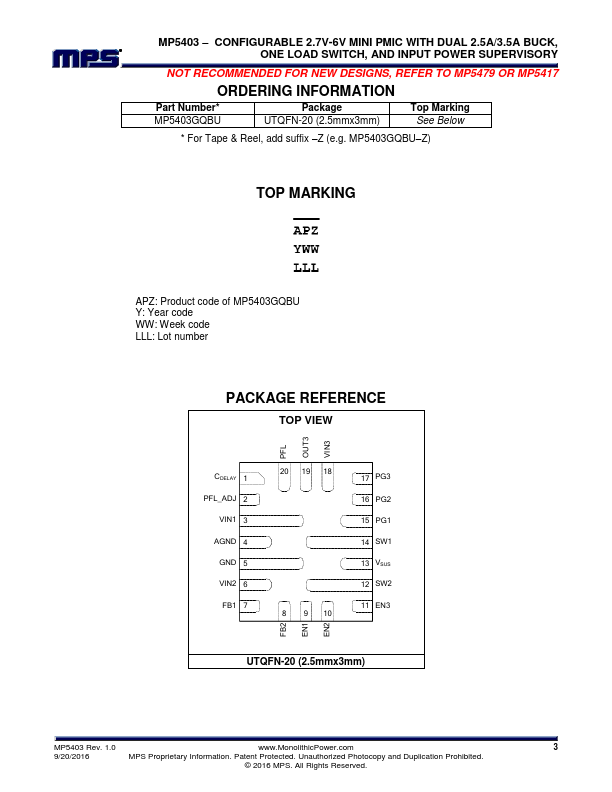

datasheet Preview Page 3

Datasheet Details

Part number	MP5403
Manufacturer	MPS
File Size	1.11 MB
Description	Configurable 2.7V-6V Mini PMIC
Datasheet	MP5403-MPS.pdf

MP5403 Product details

Features

The MP5403 is a monolithic power management unit containing two highefficiency, step-down, switching converters and a load switch. The two regulators supply current up to 3.5A and 2.5A separately, and the load switch supplies up to 3A of load current with an extremely low RDS(ON). With an input range of up to 6V, the MP5403 is ideal for powering ASIC and SOC for solid-state drives and other compact power systems. The peak-current-mode control scheme with pulse-skip-mode operation provides the t.
