MP5418A - Negative Charge Pump and Adjustable Regulator

MPS

📥 Download Datasheet

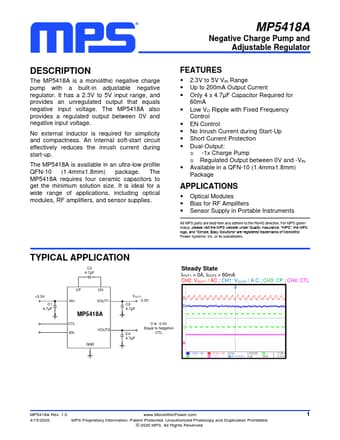

MP5418A Datasheet Preview — Preview of MP5418A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP5418A
Manufacturer	MPS
File Size	1.13 MB
Description	Negative Charge Pump and Adjustable Regulator
Datasheet	MP5418A-MPS.pdf

MP5418A Product details

Description

The MP5418A is a monolithic negative charge pump with a built-in adjustable negative regulator.

Features

2.3V to 5V VIN Range.
Up to 200mA Output Current.
Only 4 x 4.7μF Capacitor Required for 60mA.
Low VO Ripple with Fixed Frequency Control.
EN Control.
No Inrush Current during Start-Up.
Short Current Protection.
Dual-Output: o -1x Charge Pump o Regulated Output between 0V and -VIN.
Available in a QFN-10 (1.4mmx1.8mm) Package.
