MP5413 - Power Management

MPS

📥 Download Datasheet

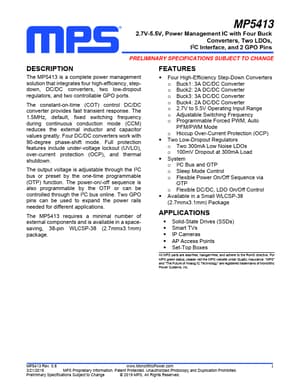

MP5413 Datasheet Preview — Preview of MP5413 PDF

datasheet Preview Page 2

Datasheet Details

Part number	MP5413
Manufacturer	MPS
File Size	135.80 KB
Description	Power Management
Datasheet	MP5413-MPS.pdf

MP5413 Product details

Features

The MP5413 is a complete power management solution that integrates four high-efficiency, stepdown, DC/DC converters, two low-dropout regulators, and two controllable GPO ports. The constant-on-time (COT) control DC/DC converter provides fast transient response. The 1.5MHz, default, fixed switching frequency during continuous conduction mode (CCM) reduces the external inductor and capacitor values greatly. Four DC/DC converters work with 90-degree phase-shift mode. Full protection features inclu.
