MP62550

Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Monolithic Power Systems MP62550DGT-LF-P IC PWR SWITCH N-CHAN 1:1 6TQFN DigiKey 400 250 units
$1.04

MP62550 Datasheet (603.79 KB)

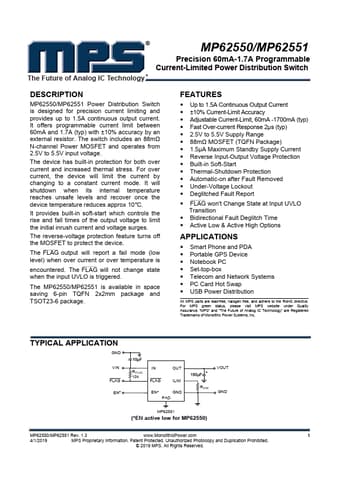

Preview of MP62550 PDF Datasheet

Datasheet Details

Part number:

MP62550

Manufacturer:

MPS

File Size:

603.79 KB

Description:

Precision 60ma-1.7a programmable current-limited power distribution switch

MP62550 Features

* Up to 1.5A Continuous Output Current

* ±10% Current-Limit Accuracy

* Adjustable Current-Limit, 60mA -1700mA (typ)

* Fast Over-current Response 2μs (typ)

* 2.5V to 5.5V Supply Range

* 88mΩ MOSFET (TQFN Package)

* 1.5μA Maximum Standby Supply Current

* Reverse Input-O

MP62550 General Description

MP62550/MP62551 Power Distribution Switch is designed for precision current limiting and provides up to 1.5A continuous output current. It offers programmable current limit between 60mA and 1.7A (typ) with ±10% accuracy by an external resistor. The switch includes an 88mΩ N-channel Power MOSFET and .
