MP62550DJ, MP62550, Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch

The Future of Analog IC Technology MP62550/MP62551 Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch .
MP62550/MP62551 Power Distribution Switch is designed for precision current limiting and provides up to 1.

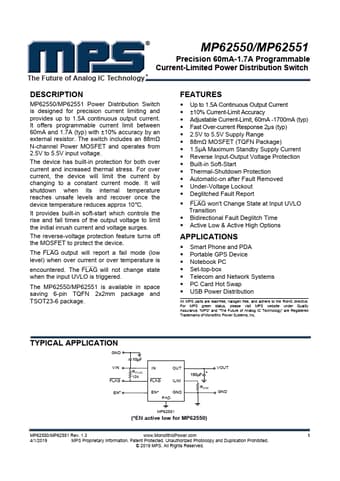

datasheet Preview Page 1 from Datasheet4u.com

MP62550-MPS.pdf

MP62550DJ Datasheet Preview — This datasheet PDF includes multiple part numbers: MP62550DJ, MP62550. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP62550DJ, MP62550

Manufacturer:

MPS

File Size:

603.79 KB

Description:

Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch

Note:

This datasheet PDF includes multiple part numbers: MP62550DJ, MP62550.
Please refer to the document for exact specifications by model.

Features

* Up to 1.5A Continuous Output Current
* ±10% Current-Limit Accuracy
* Adjustable Current-Limit, 60mA -1700mA (typ)
* Fast Over-current Response 2μs (typ)
* 2.5V to 5.5V Supply Range
* 88mΩ MOSFET (TQFN Package)
* 1.5μA Maximum Standby Supply Current
* Reverse Input-O

Applications

* Smart Phone and PDA
* Portable GPS Device
* Notebook PC
* Set-top-box
* Telecom and Network Systems
* PC Card Hot Swap
* USB Power Distribution All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website un
