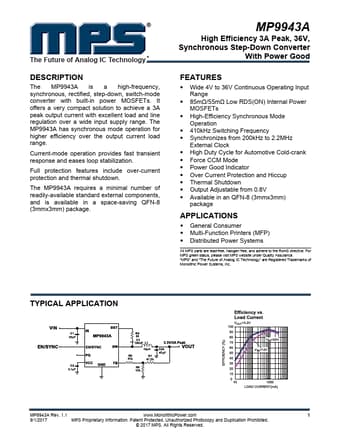

MP9943A Datasheet Preview — Preview of MP9943A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP9943A
Manufacturer	MPS
File Size	745.86 KB
Description	Synchronous Step-Down Converter
Datasheet	MP9943A-MPS.pdf

MP9943A Product details

Description

The MP9943A is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs.

Features

include over-current protection and thermal shutdown. The MP9943A requires a minimal number of readily-available standard external components, and is available in a space-saving QFN-8 (3mmx3mm) package. MP9943A High Efficiency 3A Peak, 36V, Synchronous Step-Down Converter With Power Good.
