MP9141 - Monolithic step-down switch mode converter

MP9141 Description

SHENZHEN HUAFUQIN ELECTRONICS CO.,LTD MP9141 .
The MP9141 is a monolithic step-down switch mode converter with a built in internal power MOSFET.

MP9141 Features

* 2A Output Current
* 0.22Ω Internal Power MOSFET Switch
* Stable with Low ESR Output Ceramic Capacitors
* Up to 95% Efficiency
* 25µA Shutdown Mode
* Fixed 450KHz Frequency
* Thermal Shutdown
* Cycle-by-Cycle Over Current Protection

MP9141 Applications

* Distributed Power Systems
* Battery Chargers
* Pre-Regulator for Linear Regulators
* PC Monitors 4.75 to 25 MP9141 PACKAGE REFERENCE Part number MP9141 MP9141 Package SOIC8 PDIP8 Temperature
* 40°C to +125°C
* 40°C to +125°C http://www. hfq123.co

📥 Download Datasheet

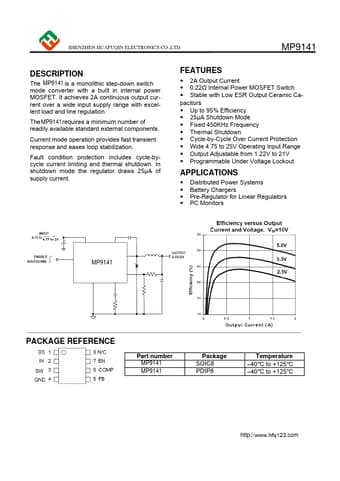

Preview of MP9141 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP9141
Manufacturer
HUAFUQIN ELECTRONICS
File Size
362.44 KB
Datasheet
MP9141-HUAFUQINELECTRONICS.pdf
Description
Monolithic step-down switch mode converter
