MP9161A - COT Synchronous Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

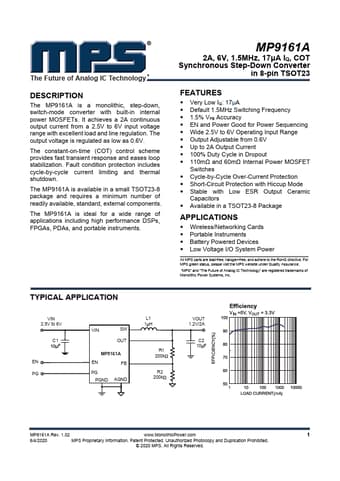

MP9161A COT Synchronous Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP9161A

Datasheet Details

Part number	MP9161A
Manufacturer	MPS
File Size	428.84 KB
Description	COT Synchronous Step-Down Converter
Datasheet	MP9161A Datasheet
Additional preview pages of the MP9161A datasheet.

Product details

Description

The MP9161A is a monolithic, step-down, switch-mode converter with built-in internal power MOSFETs.

Features

Very Low IQ: 17μA.
Default 1.5MHz Switching Frequency.
1.5% VFB Accuracy.
EN and Power Good for Power Sequencing.
Wide 2.5V to 6V Operating Input Range.
Output Adjustable from 0.6V.
Up to 2A Output Current.
100% Duty Cycle in Dropout.
110mΩ and 60mΩ Internal Power MOSFET Switches.
Cycle-by-Cycle Over-Current Protection.
Short-Circuit Protection with Hiccup Mode.
Stable with Low ESR Output Ceramic Capacitors.
Available in a TSOT23-.
