MP9148 - SYNC Buck Regulator

Product Overview

MPS

📥 Download Datasheet

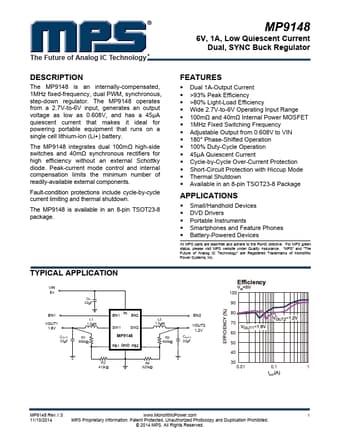

MP9148 SYNC Buck Regulator by MPS - Datasheet Preview — Datasheet preview – MP9148

Datasheet Details

Part number	MP9148
Manufacturer	MPS
File Size	511.13 KB
Description	SYNC Buck Regulator
Datasheet	MP9148 Datasheet
Additional preview pages of the MP9148 datasheet.

Product details

Description

The MP9148 is an internally-compensated, 1MHz fixed-frequency, dual PWM, synchronous, step-down regulator.

Features

Dual 1A-Output Current.
>93% Peak Efficiency.
>80% Light-Load Efficiency.
Wide 2.7V-to-6V Operating Input Range.
100mΩ and 40mΩ Internal Power MOSFET.
1MHz Fixed Switching Frequency.
Adjustable Output from 0.608V to VIN.
180° Phase-Shifted Operation.
100% Duty-Cycle Operation.
45µA Quiescent Current.
Cycle-by-Cycle Over-Current Protection.
Short-Circuit Protection with Hiccup Mode.
