MP9159A

COT Synchronous Step-Down Converter

MP9159A Features

* Very Low IQ: 17 μA

* Default 1.5 MHz Switching Frequency

* 1.5% VFB Accuracy

* EN and Power Good for Power Sequencing

* Wide 2.5 V to 6 V Operating Input Range

* Output Adjustable from 0.6 V

* Up to 1 A Output Current

* 100% Duty Cycle in Dropout

* 120 mΩ and 90

MP9159A General Description

The MP9159A is a monolithic step-down, switch-mode converter with built-in power MOSFETs. It achieves a 1 A continuous output current from a 2.5 V to 6 V input voltage range with excellent load and line regulation. The output voltage can be regulated as low as 0.6 V. The constant-on-time (COT) contr.

MP9159A Datasheet (438.11 KB)

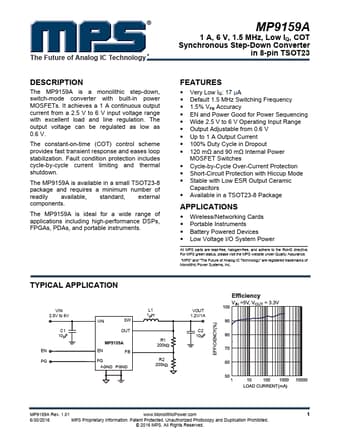

Preview of MP9159A PDF

Datasheet Details

Part number:

MP9159A

Manufacturer:

MPS

File Size:

438.11 KB

Description:

Cot synchronous step-down converter.
