MPC22163-130 - 130A high-efficiency step-down power module

Description

The MPC22163-130 is a dual-phase, nonisolated, high-efficiency step-down power module.

It integrates driver MOSFETs (DrMOS) and inductors to provide high efficiency and a small footprint, which is ideal for server applications.

Features

  • to simplify system design. The device works with tri-state pulse-width modulation (PWM) signal controllers, has Accu-SenseTM current sensing to monitor the inductor current (IL), and has temperature sensing to report the junction temperature (TJ). The MPC22163-130 is available in an LGA-72 (9mmx10mmx7.65mm) package. MPC22163-130 130A, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology.

📥 Download Datasheet

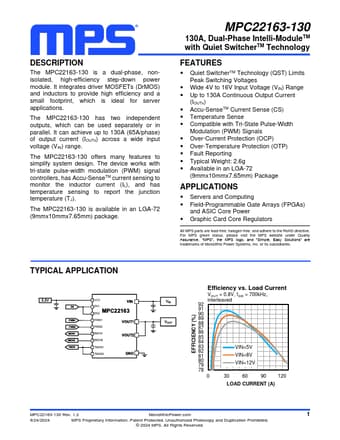

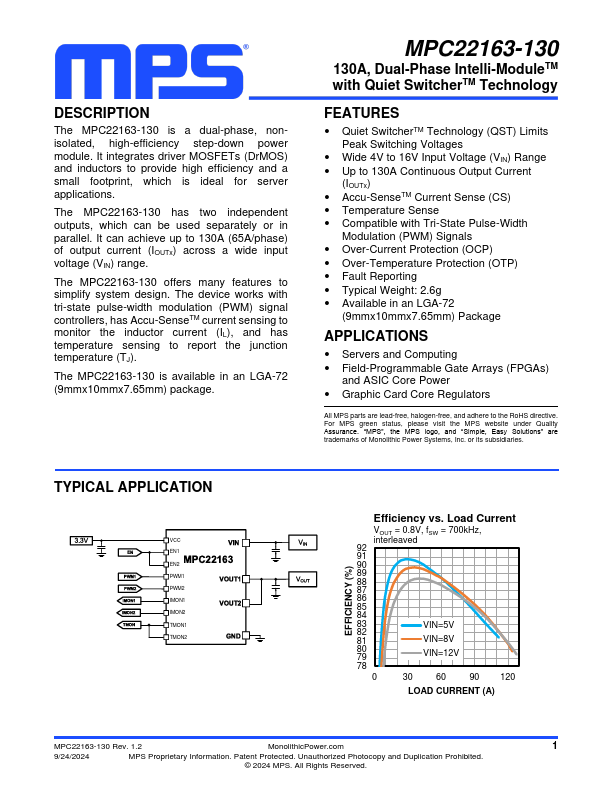

Datasheet preview – MPC22163-130
