MPM3632C

Step-Down Converter

MPS

MPM3632C Features

* include output overvoltage protection (OVP), over-current protection (OCP), and thermal shutdown. The MPM3632C is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package. FEATURES

* Complete Switch-Mode Power Supply

* 3MHz Switching Frequency

* Wide 4V to 18V Operating Input Range

MPM3632C General Description

The MPM3632C is a step-down, regulator module integrated with a synchronous, rectifying power MOSFET, inductor, and three capacitors. The MPM3632C offers a very compact solution that requires only input and output capacitors to achieve 3A of continuous output current with excellent load and line reg.

MPM3632C Datasheet (1.35 MB)

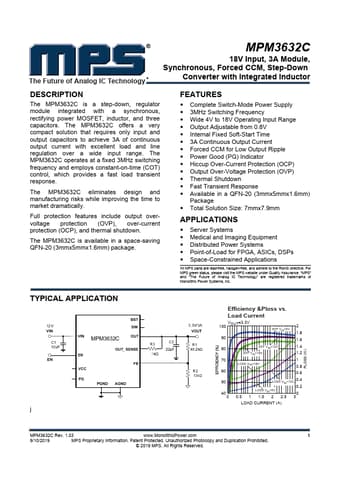

MPM3632C Datasheet Preview — Preview of MPM3632C PDF

Datasheet Details

Part number:

MPM3632C

Manufacturer:

MPS

File Size:

1.35 MB

Description:

Step-down converter.
