MPM3632S

High-Frequency 18V/3A DC/DC Regulator

MPM3632S Features

* include output overvoltage protection, over-current protection, and thermal shut down. The device eliminates design and manufacturing risks while dramatically improving time to market. The MPM3632S is available in a space-saving EC LGA-10 (3mmx3mmx1.45mm) package. FEATURES

* Wide 4V to 18V Oper

MPM3632S General Description

The MPM3632S is a synchronous, rectified, step-down, mini-module regulator with built-in power MOSFETs, an inductor, and two capacitors. It offers a compact solution with only input and output capacitors to achieve a 3A continuous output current with excellent load and line regulation over a wide in.

MPM3632S Datasheet (929.69 KB)

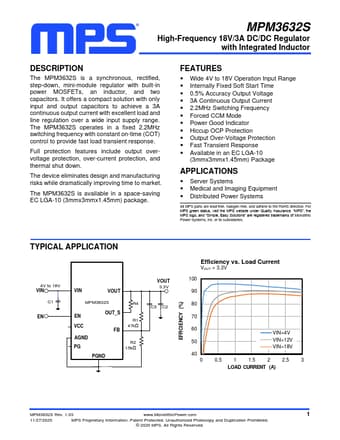

Preview of MPM3632S PDF

Datasheet Details

Part number:

MPM3632S

Manufacturer:

MPS

File Size:

929.69 KB

Description:

High-frequency 18v/3a dc/dc regulator.
