MPM3864 - Synchronous Power Module

MPS

📥 Download Datasheet

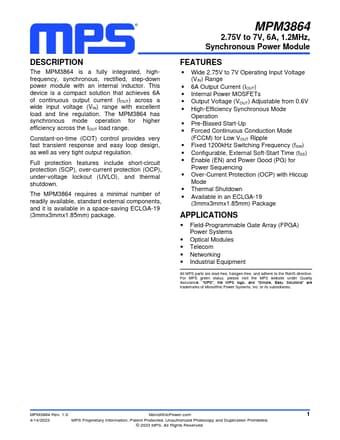

MPM3864 Datasheet Preview — Preview of MPM3864 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPM3864
Manufacturer	MPS
File Size	683.33 KB
Description	Synchronous Power Module
Datasheet	MPM3864-MPS.pdf

MPM3864 Product details

Description

The MPM3864 is a fully integrated, highfrequency, synchronous, rectified, step-down power module with an internal inductor.

Features

include short-circuit protection (SCP), over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown. The MPM3864 requires a minimal number of readily available, standard external components, and it is available in a space-saving ECLGA-19 (3mmx3mmx1.85mm) package. MPM3864 2.75V to 7V, 6A, 1.2MHz, Synchronous Power Module.
