MPM54304GMN, MPM54304 Datasheet - MPS

MPM54304GMN Quad-Output Power Module

The MPM54304 is a quad-output, DC/DC stepdown power module with up to 3A per output (channel 1 and 2) and 2A per output (channel 3 and 4). Channels 1 and 2 can be paralleled to provide up to 6A of current, and channels 3 and 4 can be paralleled to provide up to 4A of current. Operating over a 4V to .

MPM54304GMN Features

* a two-time, nonvolatile programmable memory. Its operating parameters are programmable via the I2C. The MPM54304 requires a minimal number of external components, and is available in ultrathin LGA-33 (7mmx7mmx2mm) package. TYPICAL APPLICATION 4V to 16V C1 22µF C2 22µF I2C { SW1 SW2 VIN VOUT1 FB1

MPM54304-MPS.pdf

This datasheet PDF includes multiple part numbers: MPM54304GMN, MPM54304. Please refer to the document for exact specifications by model.

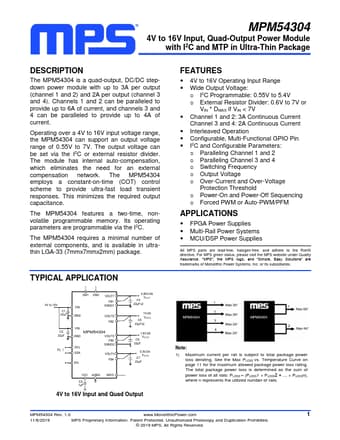

MPM54304GMN Datasheet Preview Page 2 MPM54304GMN Datasheet Preview Page 3

Datasheet Details

Part number:

MPM54304GMN, MPM54304

Manufacturer:

MPS

File Size:

1.59 MB

Description:

Quad-output power module.

Note:

This datasheet PDF includes multiple part numbers: MPM54304GMN, MPM54304.
Please refer to the document for exact specifications by model.
