MPQ4228-Q 3A 36V Step-Down Converter

MPQ4228-Q Description

MPQ4228-Q 3A, 36V, Step-Down Converter with 1-Channel USB Charging Port Supporting QC3.0 and Type-C 5V @ 3A DFP, AEC-Q100 Qualified .
The MPQ4228-Q integrates a monolithic, stepdown, switch-mode converter with a single USB current-limit switch and Type-C 5V @ 3A mode configuration ch.

MPQ4228-Q Features

* DP/DM Support Quick Charge 3.0 Mode Class A
* Backwards Compatible with DCP Schemes: BC1.2 Short Mode, Apple 3A Divider Mode, 1.2V/1.2V Mode
* Supports USB Type-C 5V @ 3A DFP Mode
* NTC Over-Temperature Detection
* Passed Apple MFI Certification Test

MPQ4228-Q Applications

* It achieves 3A of output current across a wide input supply range, with excellent load and line regulation. The output of the USB switch is current-limited. The USB port supports Quick Charge 3.0 (QC3.0) mode. It is backwards compatible with DCP schemes for battery charging specification (BC1.2), A

📥 Download Datasheet

Preview of MPQ4228-Q PDF

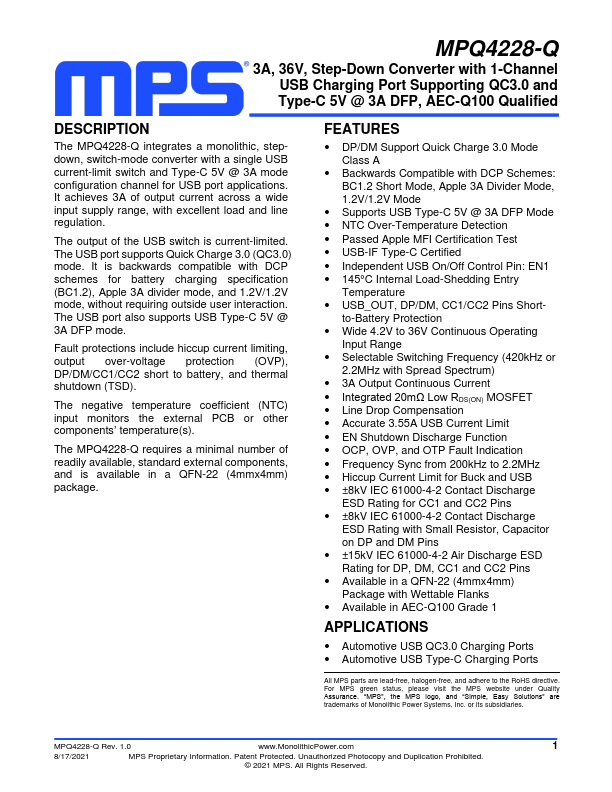

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ4228-Q
Manufacturer
MPS
File Size
1.20 MB
Datasheet
MPQ4228-Q-MPS.pdf
Description
3A 36V Step-Down Converter
