MPQ4569GQ, MPQ4569-AEC1 - 0.3A Synchronous Step-Down Converter

MPS

📥 Download Datasheet

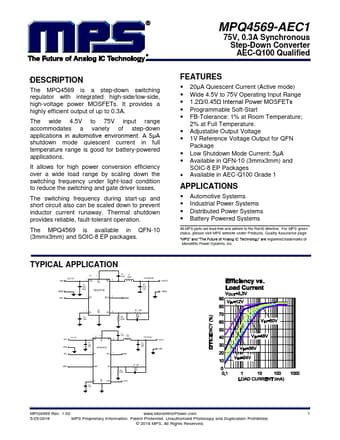

MPQ4569GQ Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ4569GQ, MPQ4569-AEC1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ4569GQ, MPQ4569-AEC1
Manufacturer	MPS
File Size	1.09 MB
Description	0.3A Synchronous Step-Down Converter
Datasheet	MPQ4569-AEC1-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MPQ4569GQ, MPQ4569-AEC1. Please refer to the document for exact specifications by model.

MPQ4569GQ Product details

Description

The MPQ4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs.

Features

20μA Quiescent Current (Active mode).
Wide 4.5V to 75V Operating Input Range.
1.2Ω/0.45Ω Internal Power MOSFETs.
Programmable Soft-Start.
FB-Tolerance: 1% at Room Temperature; 2% at Full Temperature.
Adjustable Output Voltage.
1V Reference Voltage Output for QFN Package.
Low Shutdown Mode Current: 5μA.
Available in QFN-10 (3mmx3mm) and SOIC-8 EP Packages.
Available in AEC-Q100 Grade 1.
