MPQ7200GLE, MPQ7200 Datasheet - MPS

MPQ7200GLE 1.2A Buck-Boost or 3A Buck Synchronous LED Driver

The MPQ7200 is a high-frequency, constantcurrent, buck-boost LED driver with integrated power MOSFETs. It offers a very compact solution to achieve up to 1.2A of continuous output current, with excellent load and line regulation across a wide input supply range. The MPQ7200 can also be configured fo.

MPQ7200GLE Features

* include over-current protection (OCP), output over-voltage protection (OVP) and under-voltage protection (UVP), thermal derating (TD), and thermal shutdown (TSD). The fault indicator outputs an active logic low signal if a fault condition occurs. The MPQ7200 requires a minimal number of readily avai

MPQ7200-MPS.pdf

This datasheet PDF includes multiple part numbers: MPQ7200GLE, MPQ7200. Please refer to the document for exact specifications by model.

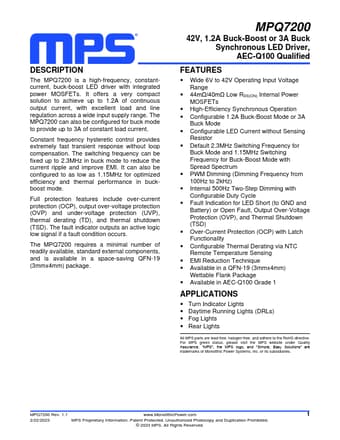

MPQ7200GLE Datasheet Preview Page 2 MPQ7200GLE Datasheet Preview Page 3

Datasheet Details

Part number:

MPQ7200GLE, MPQ7200

Manufacturer:

MPS

File Size:

2.93 MB

Description:

1.2a buck-boost or 3a buck synchronous led driver.

Note:

This datasheet PDF includes multiple part numbers: MPQ7200GLE, MPQ7200.
Please refer to the document for exact specifications by model.
