MPQ7092 Datasheet - Motorola

MPQ7092 QUAD AMPLIFIER TRANSISTOR

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C Total Device Dissipation @ Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol MPQ7091 MPQ7092 MPQ7093 Unit VCEO 150 200 250 Vdc vCBO 150 200 250 Vdc VE BO 5.0 Vdc ic 500 mAdc Each Die Four Die Equal Power PD . 750 5.98 1700 13.6 mW mW/°C pd TJ' Tstg 1.25 10 3..

MPQ7092 Datasheet (34.72 KB)

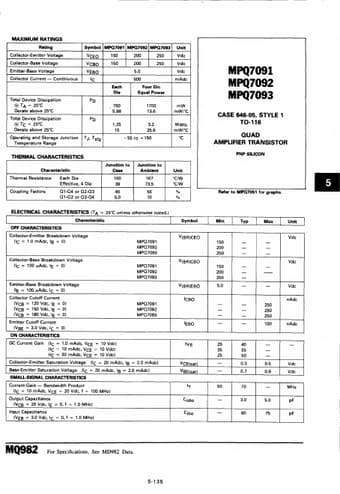

MPQ7092 Datasheet Preview — Preview of MPQ7092 PDF

Datasheet Details

Part number:

MPQ7092

Manufacturer:

Motorola

File Size:

34.72 KB

Description:

Quad amplifier transistor.
