MPQ7220GF-AEC1 Max 100mA/Ch Boost LED Driver

The MPQ7220 is a boost converter with six channel current sources. It is designed for driving automotive tail lights. The MPQ7220 uses peak current mode as its PWM control architecture. The switching frequency can be programmed by a resistor. It independently regulates the current in each LED string.

MPQ7220GF-AEC1 Features

* 3.5V to 36V Input Voltage Range

* Six Channels with Max 100mA per Channel

* Internal 100mΩ, 50V MOSFET

* Programmable Up to 2.2MHz fSW

* External Sync SW Function

* PWM Dimming (Dimming Frequency from 100Hz to 20kHz)

* Excellent EMI Performan

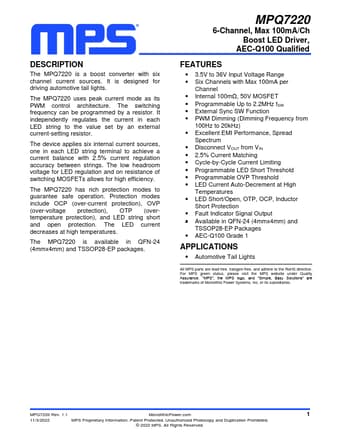

MPQ7220-MPS.pdf

MPQ7220GF-AEC1 Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ7220GF-AEC1, MPQ7220. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MPQ7220GF-AEC1, MPQ7220

Manufacturer:

MPS

File Size:

2.89 MB

Description:

Max 100ma/ch boost led driver.

Note:

This datasheet PDF includes multiple part numbers: MPQ7220GF-AEC1, MPQ7220.
Please refer to the document for exact specifications by model.
