MSK5215

LOW DROPOUT VOLTAGE REGULATOR

MSK5215 Features

* HIGH CURRENT, LOW DROPOUT SURFACE MOUNT VOLTAGE REGULATORS 5215 SERIES (315) 701-6751 4707 Dey Road Liverpool, N.Y. 13088 MIL-PRF-38534 CERTIFIED Hermetic Surface Mount Package Extremely Low Dropout Voltage: 350mV @ 1.5 Amps Available in 1.5V, 1.7V, 1.9V, 2.5V, 3.3V, 5.0V and 12.0V On Board Th

MSK5215 General Description

The MSK 5215 series voltage regulators are available in +1.5V, +1.7V, +1.9V, +2.5V, +3.3V, +5.0V, and +12.0V output configurations. All boast ultra low dropout specifications due to the utilization of a super PNP output pass transistor with monolithic technology. Dropout voltages of 350mV at 1.5 am.

MSK5215 Datasheet (243.39 KB)

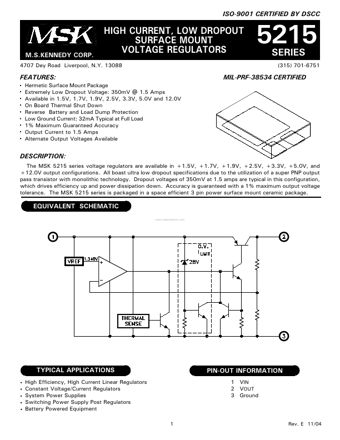

Preview of MSK5215 PDF

Datasheet Details

Part number:

MSK5215

Manufacturer:

MSK

File Size:

243.39 KB

Description:

Low dropout voltage regulator.
