MSK138 - (MSK138 / MSK139) Class C High Power op Amp

Description

The MSK 138 is a high power class "C" MOSFET operational amplifier ideally suited for high power amplification and magnetic deflection applications.

Features

  • CLASS C HIGH POWER.

📥 Download Datasheet

Datasheet preview – MSK138

Datasheet Details

Part number MSK138
Manufacturer M.S. Kennedy
File Size 282.16 KB
Description (MSK138 / MSK139) Class C High Power op Amp
Datasheet download datasheet MSK138 Datasheet
Additional preview pages of the MSK138 datasheet.

📁 Similar Datasheet

  • MSK130 - ULTRA HIGH VOLTAGE HIGH SPEED DIFFERENTIAL OP-AMP (MSK)
  • MSK131 - ULTRA HIGH VOLTAGE VERY HIGH SPEED DIFFERENTIAL OP-AMP (Mospec Semiconductor Corporation)
  • MSK103 - ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER (MSK)
  • MSK110F - Schottky Bridge Rectifier (SEQ)
  • MSK12F - Schottky Bridge Rectifier (SEQ)
  • MSK1461 - HIGH SPEED/VOLTAGE OP AMP (MSK)
  • MSK14F - Schottky Bridge Rectifier (SEQ)
  • MSK155 - HIGH POWER DUAL OPERATIONAL AMPLIFIER (MSK)
  • MSK158 - (MSK158 / MSK159) Ultra High Voltage Operational Amplifier (MSK)
  • MSK159 - (MSK158 / MSK159) Ultra High Voltage Operational Amplifier (MSK)
Other Datasheets by M.S. Kennedy
  • MSK139 - (MSK138 / MSK139) Class C High Power op Amp
  • MSK5211 - DUAL +/- VOLTAGE REGULATOR

Full PDF Text Transcription

Click to expand full text

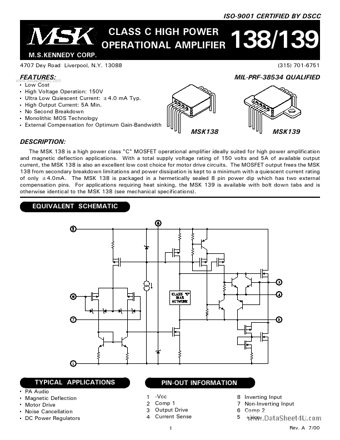

ISO-9001 CERTIFIED BY DSCC M.S.KENNEDY CORP. FEATURES: CLASS C HIGH POWER OPERATIONAL AMPLIFIER 138/139 (315) 701-6751 4707 Dey Road Liverpool, N.Y. 13088 www.datasheet4u.com Low Cost High Voltage Operation: 150V Ultra Low Quiescent Current: ±4.0 mA Typ. High Output Current: 5A Min. No Second Breakdown Monolithic MOS Technology External Compensation for Optimum Gain-Bandwidth MIL-PRF-38534 QUALIFIED MSK138 MSK139 DESCRIPTION: The MSK 138 is a high power class "C" MOSFET operational amplifier ideally suited for high power amplification and magnetic deflection applications. With a total supply voltage rating of 150 volts and 5A of available output current, the MSK 138 is also an excellent low cost choice for motor drive circuits.
