MSK110F - Schottky Bridge Rectifier

This page provides the datasheet information for the MSK110F, a member of the MSK12F Schottky Bridge Rectifier family.

Features

  • s.
  • Io 1.0A.
  • VRRM 20V~100V.
  • Schottky chip.
  • High surge forward current capability.
  • Outline Dimensions and Mark MBF .014(0.35) .006(0.15) .008(0.20) MAX .181(4.60) .2528(6.40) .142(3.60) .283(7.20) Low VF.

📥 Download Datasheet

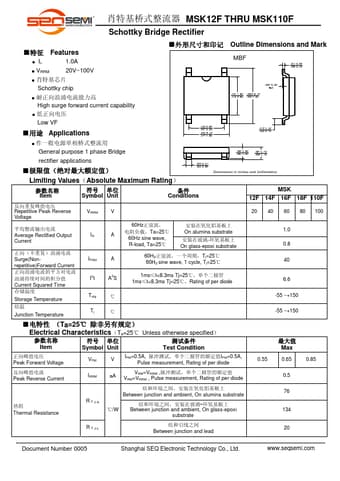

Datasheet preview – MSK110F

Datasheet Details

Part number MSK110F
Manufacturer SEQ
File Size 451.45 KB
Description Schottky Bridge Rectifier
Datasheet download datasheet MSK110F Datasheet
Additional preview pages of the MSK110F datasheet.

📁 Similar Datasheet

  • MSK103 - ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER (MSK)
  • MSK130 - ULTRA HIGH VOLTAGE HIGH SPEED DIFFERENTIAL OP-AMP (MSK)
  • MSK131 - ULTRA HIGH VOLTAGE VERY HIGH SPEED DIFFERENTIAL OP-AMP (Mospec Semiconductor Corporation)
  • MSK138 - (MSK138 / MSK139) Class C High Power op Amp (M.S. Kennedy)
  • MSK139 - (MSK138 / MSK139) Class C High Power op Amp (M.S. Kennedy)
  • MSK1461 - HIGH SPEED/VOLTAGE OP AMP (MSK)
  • MSK155 - HIGH POWER DUAL OPERATIONAL AMPLIFIER (MSK)
  • MSK158 - (MSK158 / MSK159) Ultra High Voltage Operational Amplifier (MSK)
  • MSK159 - (MSK158 / MSK159) Ultra High Voltage Operational Amplifier (MSK)
  • MSK15A - Surface Mount ESD Protection Diodes (msksemi)
Other Datasheets by SEQ
  • MSK12F - Schottky Bridge Rectifier
  • MSK14F - Schottky Bridge Rectifier
  • MSK16F - Schottky Bridge Rectifier
  • MSK18F - Schottky Bridge Rectifier

Full PDF Text Transcription

Click to expand full text
MSK12F THRU MSK110F Schottky Bridge Rectifier ■ Features ● Io 1.0A ● VRRM 20V~100V ● Schottky chip ● High surge forward current capability ● ■ Outline Dimensions and Mark MBF .014(0.35) .006(0.15) .008(0.20) MAX .181(4.60) .2528(6.40) .142(3.60) .283(7.20) Low VF ■ Applications ● .102(2.60) .087(2.20) .200(5.10) .177(4.50) .043(1.10) .028(0.70) General purpose 1 phase Bridge rectifier applications ■（） .063(1.60) .051(1.30) .067(1.70) .055(1.40) .033(0.84) .022(0.
