MT03022P Datasheet - MT Semiconductor

MT03022P N-Channel MOSFET

30V/240A RDS(ON)=2.0m (typ.)@VGS = 10V RDS(ON)=2.4m (typ.) @VGS = 4.5V 100% avalanche tested Excellent CdV/dt effect decline Halogen - Free Device Available Applications High Frequency Switching and Synchronous Rectification BLDC G DS TO-220FB-3L Absolute Maximum Ratings TA=25°C unless otherwise .

MT03022P-MTSemiconductor.pdf

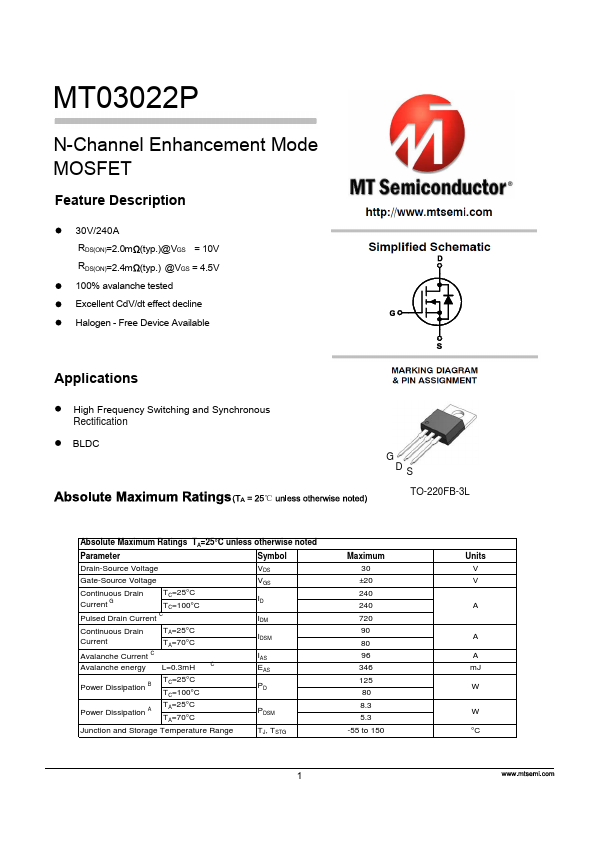

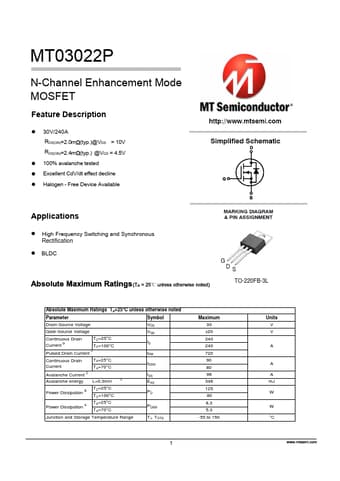

Preview of MT03022P PDF

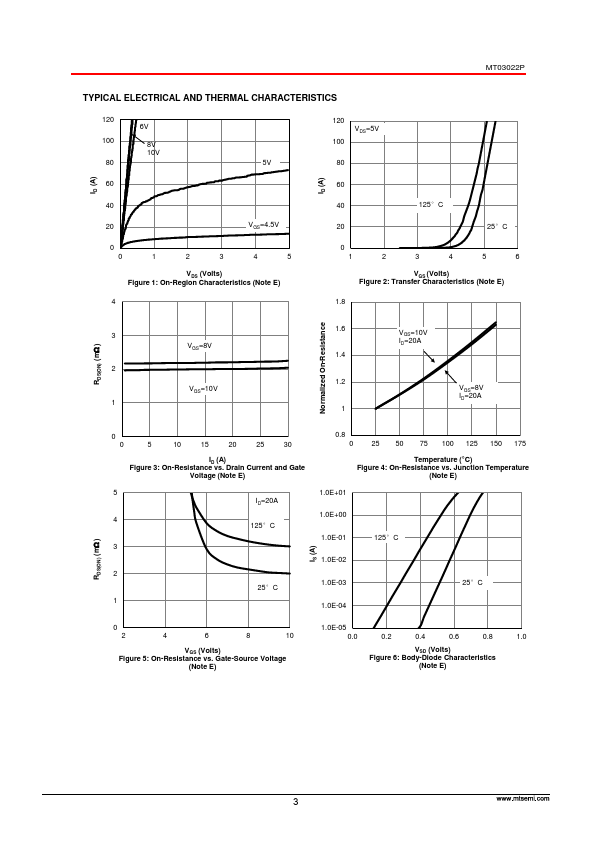

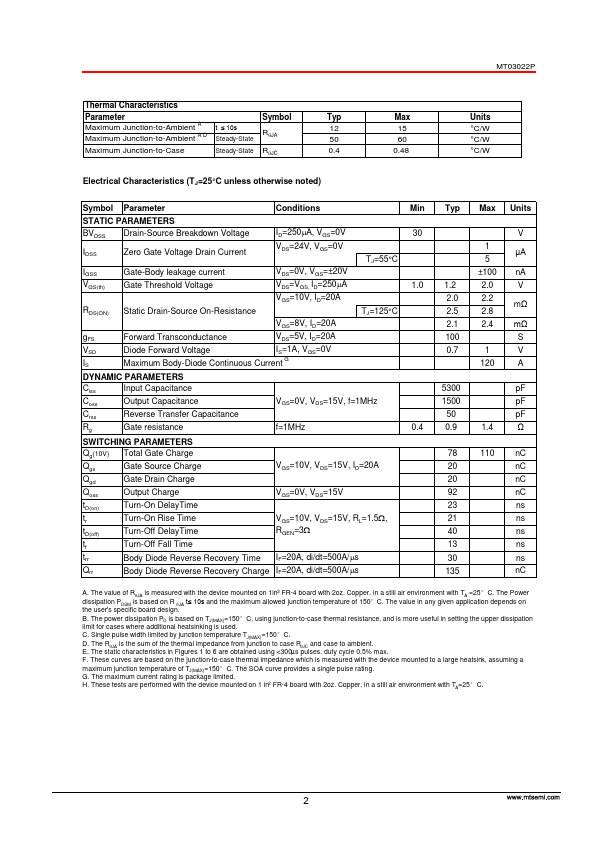

MT03022P Datasheet Preview Page 2 MT03022P Datasheet Preview Page 3

Datasheet Details

Part number:

MT03022P

Manufacturer:

MT Semiconductor

File Size:

1.39 MB

Description:

N-channel mosfet.
